Our Products
Home
|
Pix Powerware Coupling and Pulley
Pix Powerware
Coupling and Pulley
Taper Lock Dual Duty Pulleys
Taper Lock Dual Duty Pulleys
Dual Duty grooves to perfectly match Classical V and Spacesaver wedge belts.
Taper Lock pulleys for Poly-V and Timing / HTD drives.
Caters to drives upto 200 kW with speed ratios upto 1:7.
'Shelf to Shaft' - ready to fix.
Over 470 standard sizes.
Custom-built large pulleys for higher Power Transmission.
Download PDF for Taper Lock Dual Duty Pulleys

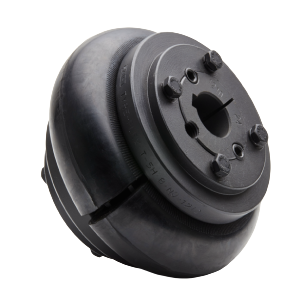

Tyre Couplings
Tyre Couplings
Highly elastic, backlash free, absorb shocks and dampen vibrations.
Choice of Tyres -Standard, Neoprenc or Fire Resistant Anti-static (FRAS).
17 sizes-power rating from 0.22 kW to 132 kW at 100rpm.

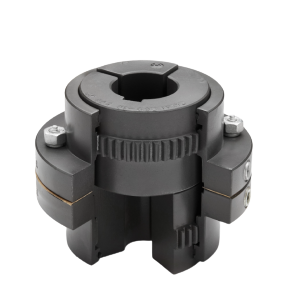

Gear Couplings
Gear Couplings
High mechanical flexibility - Curved tooth profile
Carbon steel forged / cast hubs with hardened teeth.
19 sizes - power rating 11.5 kW to 12700 kW at 100 rpm.
Variants of Shear Pin, Spacer, Torsion Shaft types.
Bush Type Flexible Couplings
Bush Type Flexible Couplings
Simple & compact in construction.
Transmits torque through high tensile steel bolts.
26 sizes-power rating from 0.81 kW to 2069 kW at 100 rpm.
Essex Couplings
Essex Couplings
Flexible inserts cater for incidental angular, parallel and axial misalignments.
Quick and easy installation.
Range of Standard, External Spider and Cushion Type with power rating from 0.21 kW to 22.40 kW at 100 rpm.
Resilient Couplings
Resilient Couplings
Torsonally flexible providing protection against shock load, impact load and vibration.
Transmits full torque with dampened vibration and reduce peak loads.
Sizes: from 0.45kW to 130kW per 100 rpm and bore up to 267 mm.
HRC Flexible Jaw Couplings
HRC Flexible Jaw Couplings
Higher power transmission and misalignment capacity.
Withstands temperatures from - 40
0
C to 100
0
C.
8 sizes - power rating from 0.33 kW to 33 kW at 100 rpm.
Standardised HRC plug-in Flywheel Couplings fro Kirloskar, Cummins, Leyland, Ruston & Perkins engines.
Download PDF for Product Range
